ESD Antistatic Processing
Static dissipation hook and loop fasteners are treated with conductive or antistatic agents to effectively reduce the risk of static electricity buildup, making them suitable for fixing applications in electronic manufacturing, semiconductor equipment, and precision instruments.
Description
Product Overview

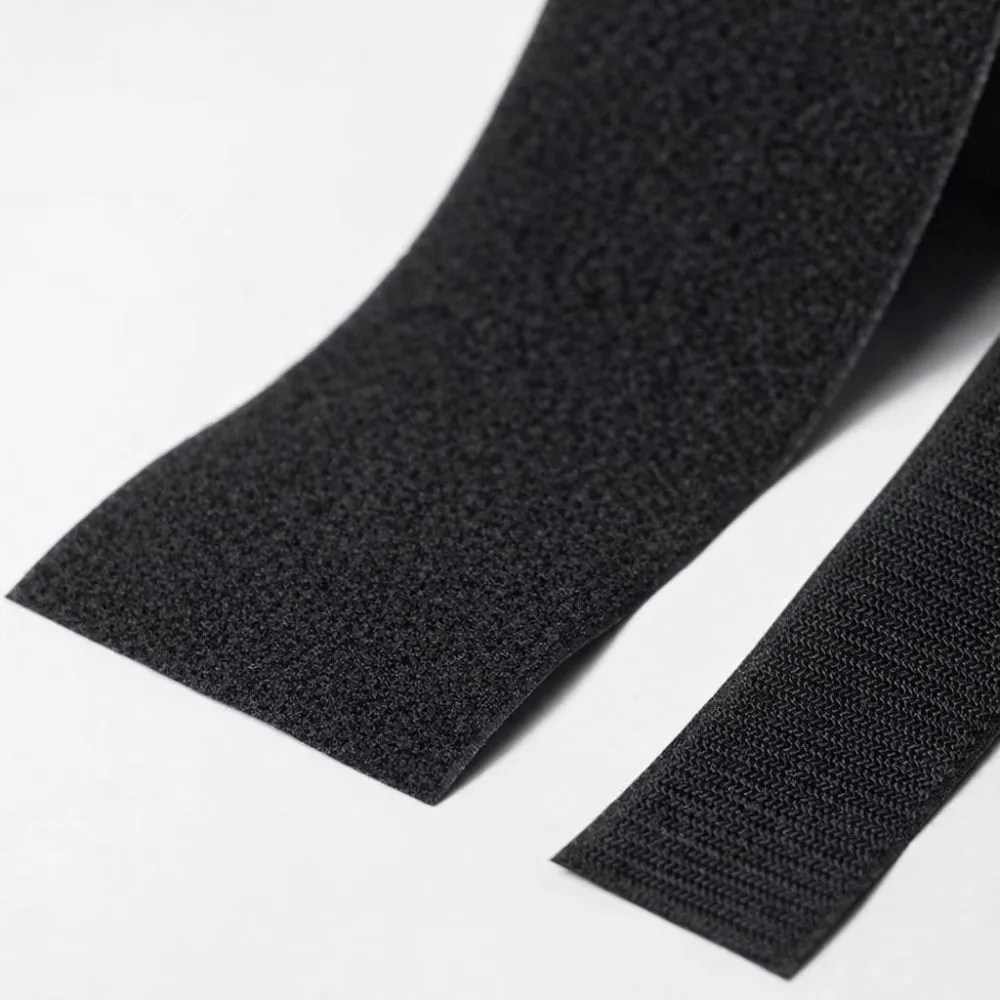

ESD hook and loop fasteners are functional hook and loop fasteners that possess static electricity dissipation capabilities through conductive fiber blends or antistatic treatments.
These products effectively reduce the risk of static charge accumulation and instantaneous discharge (ESD), preventing damage to electronic components and precision equipment.
Electrostatic control technology
1. Conductive Fiber Blend
Conductive yarns are added during the weaving process to give the material stable conductivity.
2. Antistatic Coating
Surface treatment technology reduces the surface resistivity of the material.
3. Customized Resistance Design
The resistance range can be adjusted according to customer needs.
Surface resistivity range (reference value)
- Static electricity dissipation range: 10⁶ – 10⁹ Ω
- Customizable to meet application requirements※ Actual values depend on materials and testing conditions; test reports are available.
⚡ Material conductivity classification table
Resistance Value Interpretation
According to ANSI/ESD S20.20 or IEC 61340-5-1 standards, resistance values are classified as follows:
Resistance Classification Table
Unit: Ohms (Ω)
| category | Surface resistivity range（Ω） | illustrate |
|---|---|---|
| conductor | 10^3 ~ 10^5 | The material has high conductivity, making it suitable for applications requiring rapid conductivity. |
| Conductive dissipation body | 10^5 ~ 10^8 | The material can effectively dissipate static electricity and prevent static electricity buildup. |
| Antistatic body | 10^8 ~ 10^11 | The material has antistatic properties and low electrostatic conductivity, making it suitable for protecting sensitive components. |
| insulator | >10^12 | The material is an insulator, which can block current and is suitable for insulating and protecting electronic components and equipment. |
Meaning of Terms
Anti-Static
• Definition: Anti-static materials prevent static electricity from accumulating on the surface of objects.
• Key Characteristics: Reduces the risk of electrostatic discharge (ESD) but does not actively release charge.
• Applications: Used in environments to prevent static electricity from damaging sensitive electronic components or causing sparks.
• Example: Anti-static bags for packaging electronic components.
Dissipative
• Definition: Dissipative materials allow charge to be released to the ground at a controlled rate.
• Key Characteristics: Resistance is between conductive and insulating, allowing safe discharge of charge and preventing damage to static-sensitive devices.
• Applications: Commonly used in electronic product manufacturing environments, on surfaces, or in anti-static packaging.
• Example: Grounding wires used in anti-static environments.
Conductive
• Definition: Conductive materials allow charge to move freely on their surface or within them.
• Key Characteristics: Very low resistance.
• Applications: Conducting charge in grounding systems or as conductive connecting elements.
• Examples: Metallic conductors in grounding wires or materials with added carbon.
Insulation
• Definition: Insulating materials prevent the movement of electric charge and do not allow the flow of current.
• Key characteristics: Extremely high resistance, suitable for electrical isolation and protection.
• Applications: Used to prevent electric shock or isolate electrical components.
• Examples: Rubber gloves, plastic shells, or ceramic materials.
Product Features and Advantages
1. Effectively reduces ESD risk
Prevents damage to electronic components from electrostatic discharge.
2. Stabilizes conductivity
Maintains long-term stability.
3. Maintains fastening strength
Although processed, it still provides good hook and loop fastening.
4. Compatible with various processing methods
- Die-cutting
- Multi-layer lamination
Applicable application areas
- Electronics Manufacturing Production Lines
- Semiconductor Equipment Fixtures
- Server and Communication Equipment
- Precision Instrument Assembly
- Cleanroom Environment Applications
Meets relevant standards (as required)
- ANSI/ESD S20.20
- IEC 61340-5-1
- Customer-specified ESD testing specification※ Test reports can be provided according to project requirements.
Why choose anti-static hook and loop fasteners?
In the electronics and semiconductor industries, electrostatic discharge (ESD) control is a core element of quality and reliability. Hook and loop fasteners with ESD protection can effectively reduce potential risks and improve product stability and safety.
